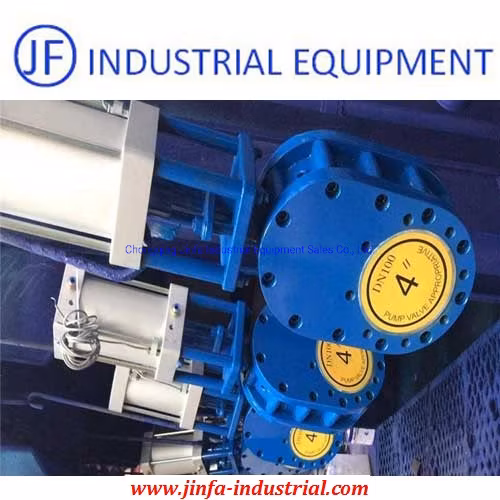

DN100 Double Disc Discharge Gate Valve

Basic Info.

Actuator	Pneumatic
Seal Surface	Parallel Gate Valve
Thread Position of Valve Rod	Inside Gate Valve
Usage	Regulation, Emptying, Drain, Temperature Control, Flow Control
Standard	GB
Application	Industrial Usage, Water Industrial Usage
Delivery Time	15-30 Work Days
Warranty	12 Months
Working Pressure	0.6-1.6MPa
Diamter	DN50-1200mm
Transport Package	Export Package
Origin	Zhejiang
HS Code	84818040
Production Capacity	10000 Pieces/Year

Product Description

DN100 Double Disc Discharge Gate Valve

Application:

This valve is mainly used in the fly ash pneumatic conveying system of thermal power generation enterprises,

as a warehouse pump discharge valve, balance valve, exhaust valve, and plugging valve.

It can also be used as a pipeline switching valve and an ash unloading valve. At the same time,

it can also be used for opening and closing the pipelines with various wearable dry dust, water,

steam and other media such as cement, mining, papermaking, and chemical industries.

Technical Feature:

This valve is a double gate valve, which is sealed in any direction after being closed. The valve body is made of precision cast steel parts, the sealing packing is made of wear-resistant and high-temperature resistant fluorine rubber sealing components,

and the sealing surface between the valve plate and the valve seat is made of wear-resistant cemented carbide or wear-resistant toughened structural ceramics.

The surface is smooth and the hardness can reach 60. ~70HRC, which solves the problem that the sealing surface is easily eroded due to material scouring and the service life is not long.

The service life is 5-10 times longer than that of ordinary material valves, which brings ideal use effects and economic benefits to users, and greatly improves the equipment Safety and stability of operation.

This valve has the characteristics of good sealing performance, strong wear resistance, high temperature resistance, low starting load, no dust jam or dust accumulation, and long service life.

Working Principle:

When the air input from the upper air inlet, the valve stem drives the valve plate to move downward, and the valve is closed.

When the air input from the lower air inlet, the valve stem drives the valve plate to move upward, and the valve opens.

A spring is loaded between the valve plate and the valve seat. The spring force always presses the valve plate against the valve seat

to ensure the sealing of the valve, and allows the valve plate to move vertically up and down, which helps to compensate for the thermal expansion

and contraction of the valve parts, and It can overcome the influence of any back pressure changes on the seal and prevent particulate media from entering between the two sealing surfaces.

During the opening and closing process, the valve plate can rotate to make grinding and polishing effects between the sealing surfaces, and because the valve body is eccentric to the passage,

vortex flow will be generated when the material is opened and discharged, and the formed material vortex will clean the valve by itself. Lumen.

All these characteristics make this valve have a long service life and provide a reliable guarantee for the safe operation of your system.

Double Disc Discharge Gate Valve

Nominal diameter: DN40-DN300 (also can be customized according to customer needs)

Nominal pressure: 1.0-1.6MPa

Pneumatic actuator working pressure: 0.4-1.0MPa

Applicable temperature: 200ºC (other high temperature resistant type can withstand high temperature up to 400ºC)

Applicable medium: fly ash, ash, dry dust, solid particles, gas, liquid, etc.

Scope of application:

1. Dry ash system of thermal power plant (inlet and discharge conveying, used as balance valve, exhaust valve, and blockage valve).

2. Bulk material conveying system in cement, chemical, metallurgy, paper, pharmaceutical and other industries.

3. All kinds of wearable media are used for opening and closing the pipeline.

Model	DN	L	D	D1	D2	b-f	n-Φd	H
Z674Tc-10C	50	200	160	125	100	20-3	4-18	520
	65	220	180	145	120	20-3	4-18	595
	80	240	195	160	135	22-3	4-18	635
	100	280	215	180	155	22-3	8-18	630
	125	300	245	210	185	24-3	8-18	715
	150	320	280	240	210	24-3	8-23	840
	175	320	310	270	240	26-3	8-23	885
	200	350	335	295	265	26-3	8-23	1155
	250	400	390	350	320	28-3	12-23	1400
	300	450	440	400	368	28-4	12-23	1800

Installation and Using:

1. Read the manual carefully before installation, and check the valve model, diameter and technical parameters.

2. It is strictly forbidden to weld the flange after installing the valve. The valve installation distance reserved in the pipeline should be appropriate, and gaskets should be added on both sides of the flange.

3. The center of the two pipelines and the center of the valve diameter should be kept coaxial, the flange surface should be flat,

and no large deviation of the flange surface is allowed to ensure the clamping and normal operation of the valve. Tighten the bolts should be even and symmetrical

Installation Feedback Photos:
